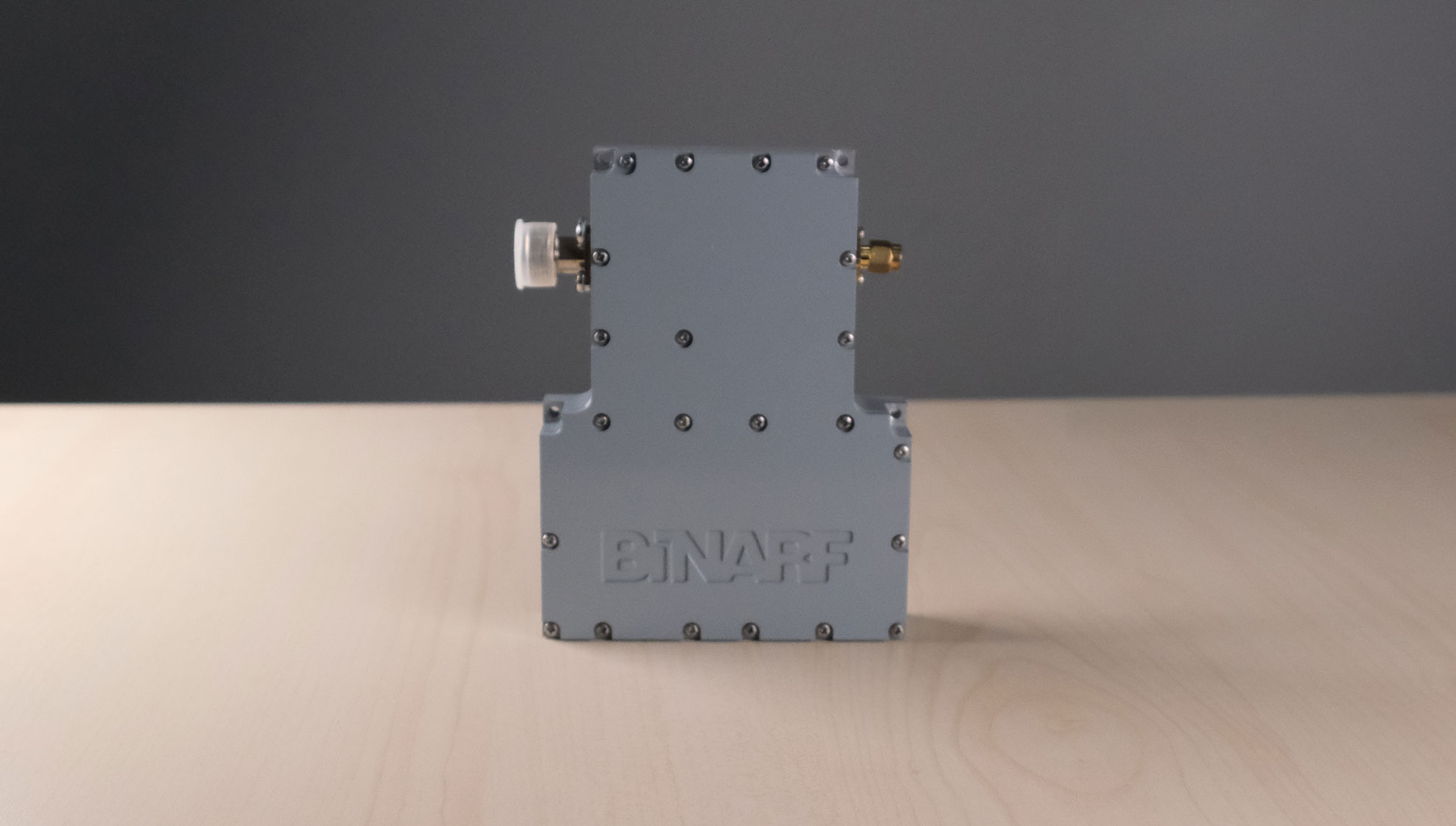

70W Amplifier

• Frequency: 4900-5900 MHz
• Input Power: 0 dBm
• Output Power: 70W min., 80W typical
• Nominal Gain: 49 dBm
• Gain Flatness: ±1 dB
• DC Supply Voltage: 48V
• DC Current: 4A typical
• Drain Efficiency: 50%
• Operating Case Temperature: -35°C to +80°C
• Storage Temperature: -65°C to +150°C
• RF Input Connector: SMA Male
• RF Output Connector: N-Type Female

100W Amplifier

• Frequency: 400-2700 MHz
• Input Power: 0 dBm
• Output Power: 90W min., 100W typical
• Nominal Gain: 50 dBm
• Gain Flatness: ±1 dB
• DC Supply Voltage: 48V
• DC Current: 5A typical
• Drain Efficiency: 55%
• Operating Case Temperature: -35°C to +80°C
• Storage Temperature: -65°C to +150°C
• RF Input Connector: SMA Male
• RF Output Connector: N-Type Female
