Specifications

• Bands: Selectable Two Bands from Fourteen Bands (GNSS or Communications)
• Antenna Type: Removable Omni Antennas
• RF Output Power:
• 100 Watt
• Jamming Range: Up to 20 km for GNSS (Tested on commercial drones)
• Note: Jamming range may vary depending on antenna characteristics and environmental factors.
• Power Supply:
• Internal Battery: DC 48V
• External Power Supply and Battery Charger: With Hardcase
• Battery Life:
• 100 Watt RF Output: 140 minutes
• 1.5 Watt RF Output: 670 minutes (More power, less working time)
• Weight:
• 25 kg Backpack
• 8.5 kg Accessories
• Operating Temperature: -20°C to +50°C
• Dimensions: 370 x 200 x 560 mm
• Installation: Via Tripod
• IP Level: IP63
• Cooling: Active Cooling System
• Control: Internal Control Panel & Tablet with Ethernet

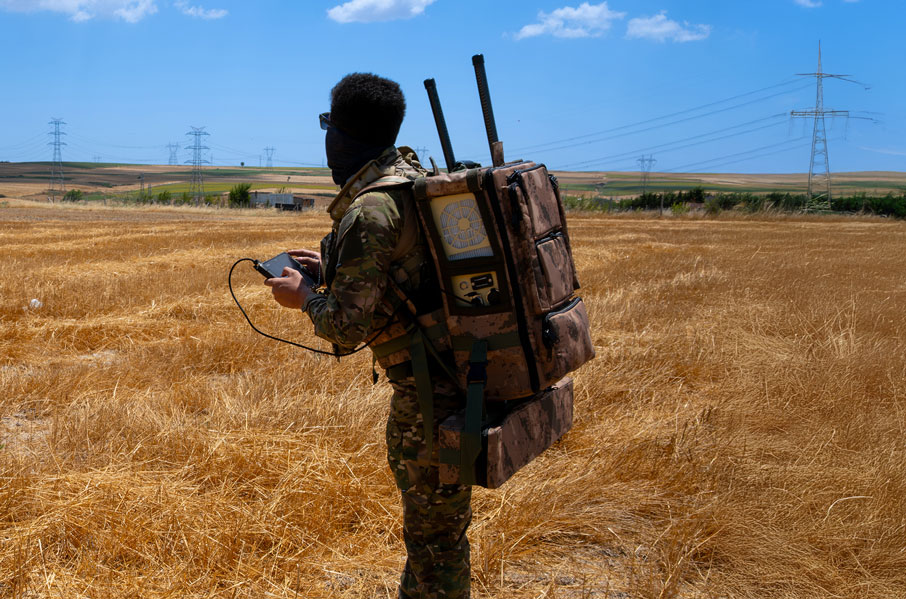

• Transport: Backpack

Additional Features

• RF Output Power Adjustment (1.5 to 100 watts via Tablet)
• Automatic RF Protection in Emergency Situations
• Can Work with Generator (220V)
• Easy Transport with Included Backpack
• Accessories: Antennas, Tablet, Power Cable, Ethernet Cable, Power Supply & Battery Charger (With Hardcase), Tripod (With Softcase)
