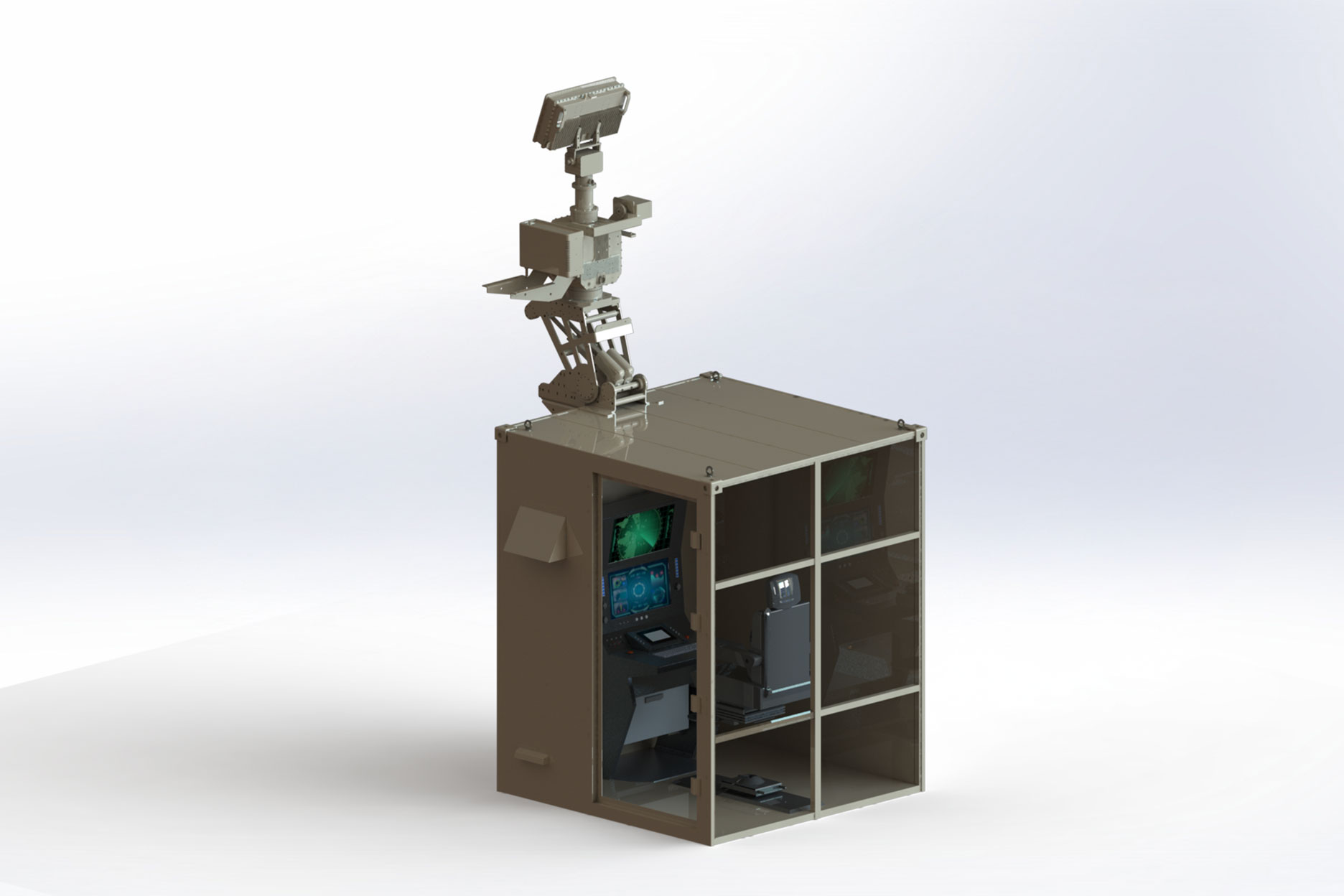

Specifications
Operating Frequency: Ku Band
System Architecture: 3B and Pulse-Compression with Pulse-Doppler
Scan Speed: 4, 8, 16, 30 rpm (selectable)
Detection Ranges
• Drone (DJI Phantom-4): Up to 4.4 km
• Drone (Talon): Up to 5.2 km
• Paramotor: Up to 9.3 km
• Human: Up to 9.3 km
• Instrumental Range: 9.3 km
Highest Tracking Target Speed: 240 km/h
Azimuth Coverage: 360° continuous, 0-360° adjustable sectors
Minimum Range: <100 m
Maximum Number of Tracks While Scanning: 500
Single Target Tracking: Target analysis mode (High Accuracy Micro-Doppler Analysis)
Built-In Test: Temperature, Voltage, Current, Communication, RF Loop Test
Beam Width
• Azimuth: 2°
• Elevation: 40°
Range Resolution: 3m
Range Accuracy: <0.5m (ms)
Elevation Positioning Range: ±25°
Operating Temperature: -32°C to +60°C
Storage Temperature: -40°C to +60°C
Environmental Conditions Compatibility: MIL-STD-810G
Electromagnetic Compatibility: MIL-STD-461
Interface: 10/100 Ethernet
Detector Specifications
Detector Type: HgCdTe cooled infrared detector
Resolution: 640×512
Pixel Pitch: 15μm
Aperture (F): F4
Frame Rate: 1-50 Hz
Spectral Band: 3.7～4.8μm
NETD: ≤25mK @25°C
Cooling Time: ≤8 min
Lens Specifications
Focal Length: 33-660mm continuous zoom
Aperture (F): F4
Field of View (FOV)
• 16.55° × 13.27° (wide)
• 0.83° × 0.67° (narrow)
Image Specifications
Digital Zoom: 1.0~4.0× continuous zoom (step size: 0.1)
Image Processing
• Non-uniformity correction
• Digital filtering noise reduction
• Digital detail enhancement
Mirror Image: Horizontal/Vertical/Diagonal mirror image
Interface Specifications
Video Output
• Analog Video: PAL
• Digital Video: SDI
Serial Communication Interface: RS422
Environmental Adaptability
Operating Temperature: -32℃ to +55℃
Storage Temperature: -40℃ to +70℃
Sensor Specifications
Type: 1/1.8” Sony Progressive Scan CMOS
Effective Pixel: 2.13 MP
Lens Specifications
Focal Length: 15 ~ 850 mm
Zoom: 57X
F-No: 2.8 ~ 6.5
Horizontal Field of View (HFOV): 29.1° x 0.5° ± 5%
Vertical Field of View (VFOV): 16.7° x 0.2° ± 5%
Diagonal Field of View (DFOV): 33.2° x 0.6° ± 5%
Close Focus Distance: 1m ~ 10m (Wide ~ Narrow)
Zoom Speed: ~8 seconds
Video Network Specifications
Compression: H.265/H.264/H.264H/MJPEG
Resolution: HD-SDI Main Stream: 1080P and 720P @ 25/30 fps
Video Bit Rate: 32 Kbps ~ 16 Mbps
Network Protocol: ONVIF, HTTP, RTSP, RTP, TCP, UDP
Minimum Illumination
Colourful: 0.05Lux @ (F2.8, AGC ON)
Image Processing Features
Noise Reduction: 2D / 3D
Shutter Speed: 1/1 ~ 1/30000 sec
Image Properties: Saturation, Brightness, Contrast, Sharpness, Gamma, etc.
WDR / BLC / HLC: Yes
S/N Ratio: > 55 dB (AGC Off, Weight ON)
AGC / Defog: Yes
Day/Night Mode: Auto (ICR) / Manual (Color, Black & White)
E-Zoom: 16X
Focus: Auto / Manual
