Specifications

Jamming Systems – GNSS (8 Band):
– GPS: L1 – L2 – L5
– GLONASS: G1 – G2
– BEIDOU: B1 – B2 – B3
– GALILEO: E1 – E5

Jamming Systems – Communications (7 Band):
– 3 Band UHF
– 2 Band S
– 2 Band C

Antenna Type:
– Patch – Directional Antenna

Antenna Beam Width:
– Azimuth: 60°
– Elevation: 60°

Antenna Gain:
– 9-10 dBi

RF Output:
– 1.5 – 100 watt for each frequency

Jamming Range:
– Up to 60 km (tested on commercial drones)
– Note: Jamming range may vary depending on antenna characteristics and environmental factors.

Power Supply:
– AC 220V / AC 110V

Weight:
– ~610 kg

Operation Temperature:
– -20°C to +50°C

Dimensions:
– 1500 x 2100 x 600 mm

Installation:
– Fixed installation

• Control:
  – Via wire control unit and tablet


Adjustability & Flexibility

• RF power on/off separate control for each unit
• RF output power adjustment (1.5 to 100 watt)
• Automatic RF protection in case of emergency
• Integrates into any system with IP port
• Emergency area leave mode
• Emergency fast setup mode
• Setting default mode for pan-tilt

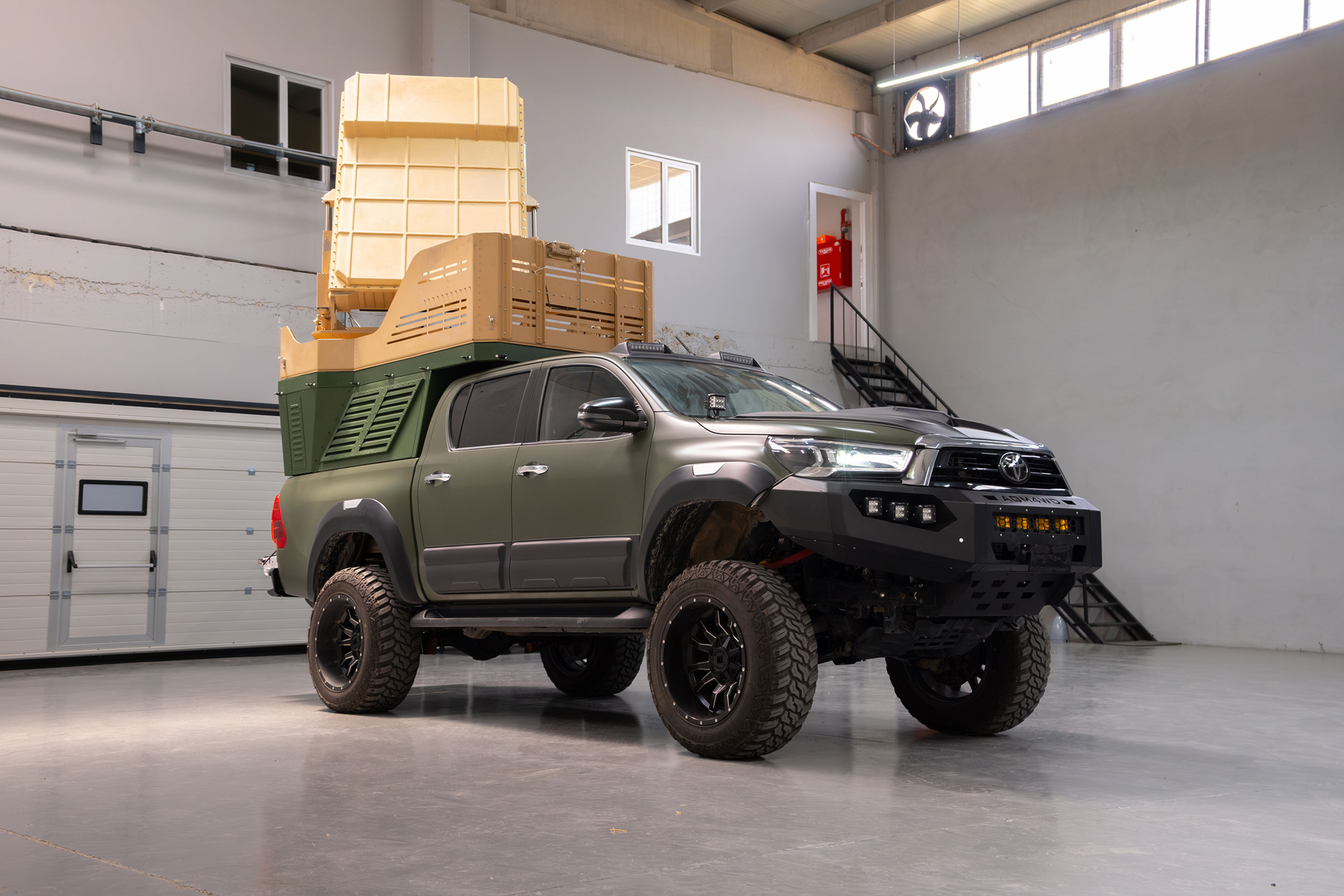

• Fixable on military/civilian vehicles, trailers, and buildings
• Works with generator (5 kW)

Monitoring (At The Control Unit / Tablet):

• On/off status (for each unit)
• Pan-tilt degree control
• Magnetic north with compass
