Jamming Systems
– Selectable From Fourteen Bands (GNSS Or Comunications)

Antenna Type
– Changeable and Removable Patch or Omni Antennas

Antenna Beam Width (Patch)
– Azimuth : 60°
– Elevation : 60°

Antenna Gain (Patch)
– 9-10 dbi

RF Output
– 100 WATT

Jamming Range
– PATCH: Up to 60 KM For GNSS (tested on commerical drone)
– OMNI: Up to 20 KM For GNSS (tested on commerical drone)
Note :The jamming range can vary depending on the antenna’s characteristics and environmental factors

Power
– Internal Power Supply AC 220V & Optional External Battery DC 48 V

Wight
– 10 kg (Transport hardcase wieght 30 kg)

Operation Temperature
– -20°C – + 50°C

Dimensions
– 290220280 mm

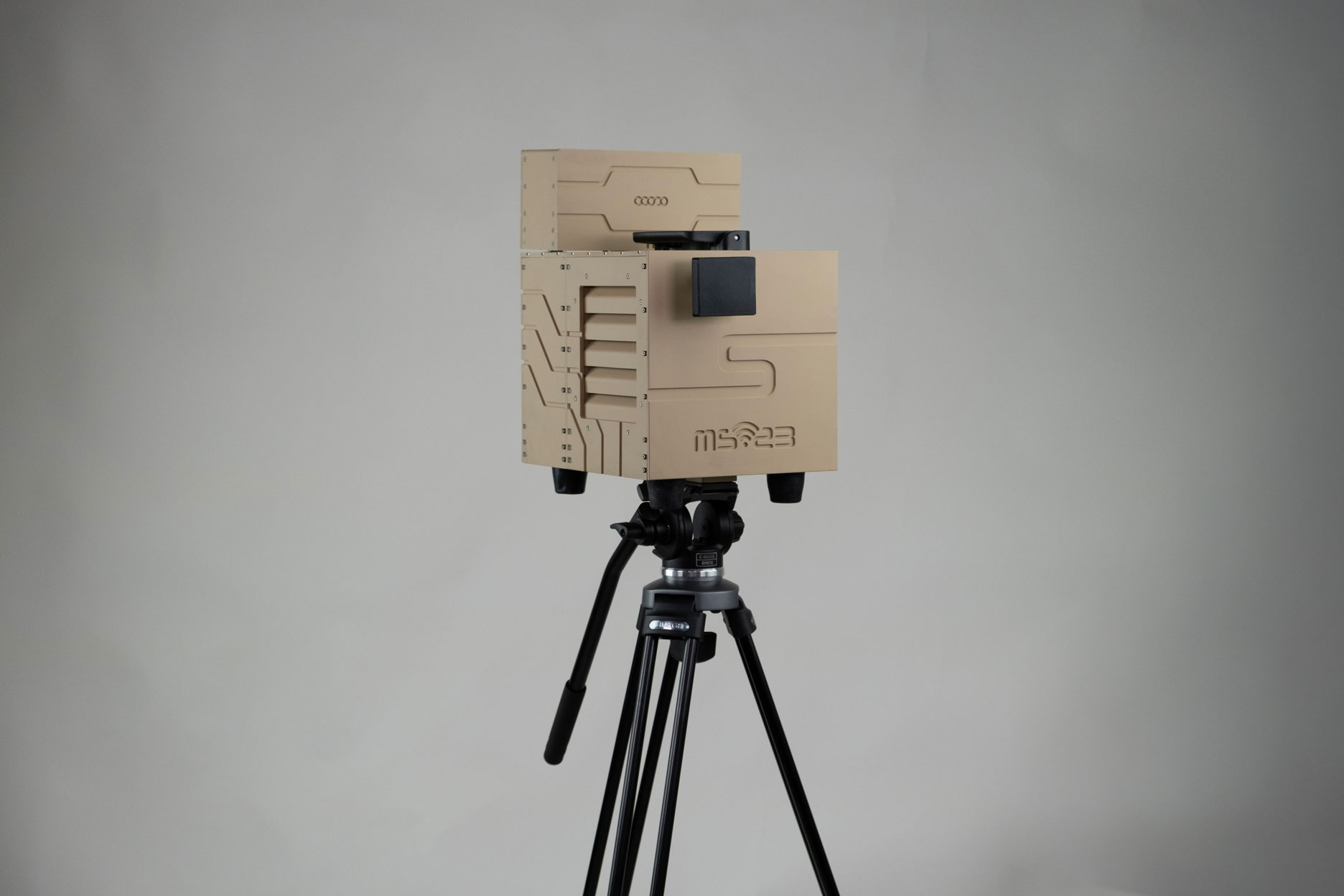

Installation
– Via Tripot (Manuel Head Pan Tilt)

IP Level
– IP63

Cooling
– Active Cooling

Control
– On / Off Button & Optional Tablet

Transport
– Via Hardcase

Adjustability and Flexibility
– RF Output Power Adjustment ( 1,5 to 100 watts RF Power Via Optional Tablet)
– Automatic RF Protection In Case Of Emergency
– Work With Generator(220V)
– Easy Transport

Accessory
– Antenna
– Tripot
– Power Cable
– Ethernet Cable
– Optinal Battery
– Optinal Battery Charger and Battery Level Checker
– Optinal Tablet
– Hardcase
